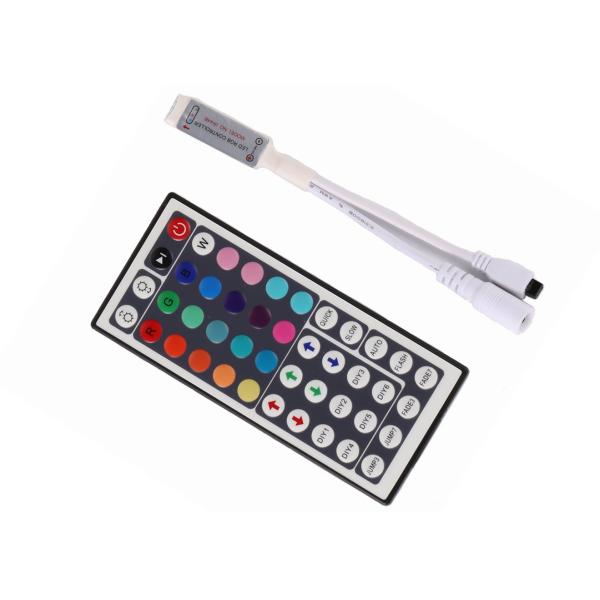

44Keys mini IR Remote LED strip Controller LED RGB strip lights

Specifications:
32 changing numbers

(20 static colour modes,6 DIY color modes,6 dynamic changing modes )
Input Voltage: 12V
Output Voltage: 12V 6A
Remote Controller Battery: 1x CR2025
Remote controller dimension: 8.5cm x 5.2cm
Current: 6A Max
Power: 72W max
Working temperature: -20 Celsius - +60 Celsius
Application: Support 10 meters of 5050 / 3528 30LEDs/M or 5 meters of SMD5050/3528 60LEDs/M or Max load 72W
Package includes:
1 x Remote Controller
1 x inline controller
1 x Manual

Controller

Remote

16 colors, 5 light pattern: Static/Flash/Strobe/Fade-change/RGB Smooth-change.

16-classes Static Mode Dim Control

16-Speeds Control in Flash / Strobe / Fade-change / RGB Smooth-change

6 DIY keys, you adjust the R/G/B color freely

Input Voltage: 12V (Power supply is not included). Compatible with LED RGB Strip lights

Control method:
Using IR remoter to control the LED strip controller,which has 44 buttons,the function of each button as listed below :



Note:
The first two keys which concerns the brightness +/- or speed +/-,they're the multiplex key in the remote.when in static mode,they are brightness adjust keys,while in dynamical mode,they are used to adjust speed.
To avoid the battery power run out by extrusion during production and transportation,insulation film will be inserted between the battery and the circuit. Be sure to take out the insulation film before using the remote.
